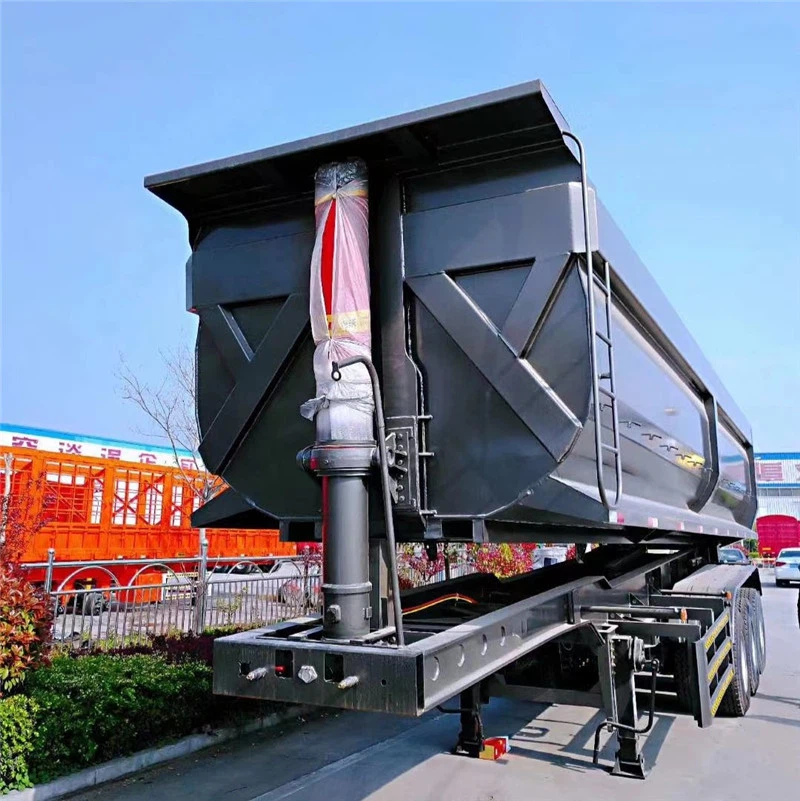

Dump Truck Semi Trailer
Driving model: 3-axle
Name of trailer: Rear Dump Trailer
Application: Coal/Mine/Stand/Stone Loading
Send Inquiry
Product Details ofDump Truck Semi Trailer
Product Details：
Features ：
1. Main frame: The longitudinal beam is made of high-strength structural steel, which is resistant to bending and impact, and can meet the requirements of heavy load.
2. Sub-frame: High-strength structural steel and integrated hydraulic system are used to improve operation accuracy. The widened turning point of the dump truck body improves the overall stability, reliability, and safety of the operation.
3. Dumping mechanism: Mallery-type rear dumping, front dumping, and rear dumping, side dumping mechanisms can be ordered by customers.
Application:
CAMC dump trailers can be used to transport bulk cargo, coal, ore, and construction materials. There is no dead corner in the U-shaped box corner, and the unloading is cleaner. T700 high-strength board is used to reduce the tare weight and reduce the damage to the box body caused by the mine head. The lower center of gravity of the U-shaped structure prevents the cargo from overflowing. We use parts from world-renowned brands, such as JOST, WABCO brake valves, etc.
Parameters Of Camc Flat Bed Trailer:
|
Name of trailer |
Model |
Dump trailer |
|
Driving model |
3-axle |
|
|
Name of trailer |
Rear Dump Trailer |
|
|
Function |
Application |
Coal/Mine/Stand/Stone Loading |
|
Body of trailer |
Thickness |
Bottom 8mm, side 6mm |
|
Dump box style |
Rectanglular / Round |
|
|
Manufacture |
CAMC |
|
|
Overall Dimension(mm) |
11000*2500*12800mm |
|
|
Loading Capacity (KG) |
50000KG-100000KG |
|
|
Axle |
2/3/4*13/16T, CAMC |
|
|
Suspension system |
Mechanical/Airbag |
|
|
Tire |
Model of tire |
12R22.5(18PR) |
|
Suspension system |
Number of springs |
10/10/10 leaf spring suspension |
|
Other configurations |
Cylinder |
HYVA (according to the length of dump box) |
|
Tool Box |
Steel/aluminum |
|
|
Brake system |
The dual Line braking system |
|
|
Brake air chamber |
WABCO, Six big double-air chambers |

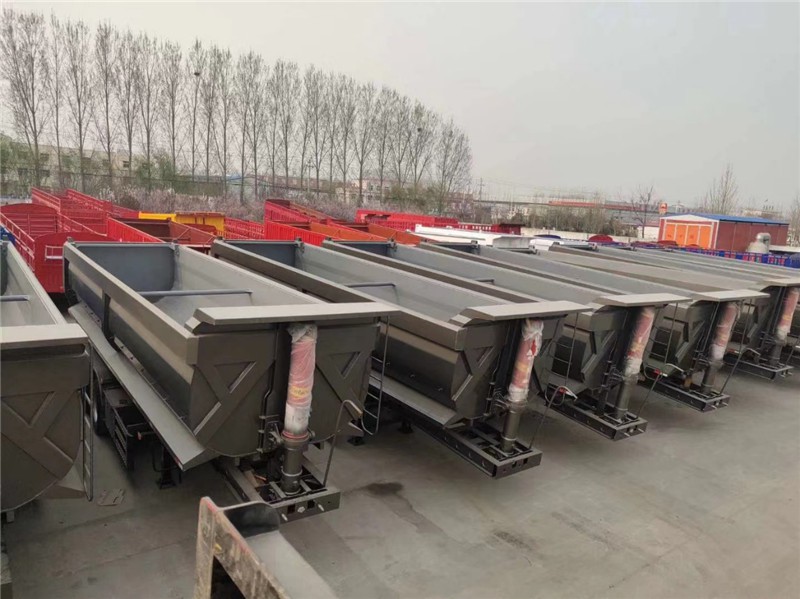

CAMC Factory:
CAMC group integrates research and development, design, production, testing, sales and transport, and can provide you with the most suitable products, the best factory price and perfect after-sales service.
CAMC, worthy of your trust.
