12 Wheel Dumper

Product Details:

The dump truck, also known as a tipper truck, consists of a truck chassis, box, and hydraulic system. They are mainly used to transport sand, gravel, garbage, etc.

Our dump trucks have a loading capacity from 20 tons to 90 tons.

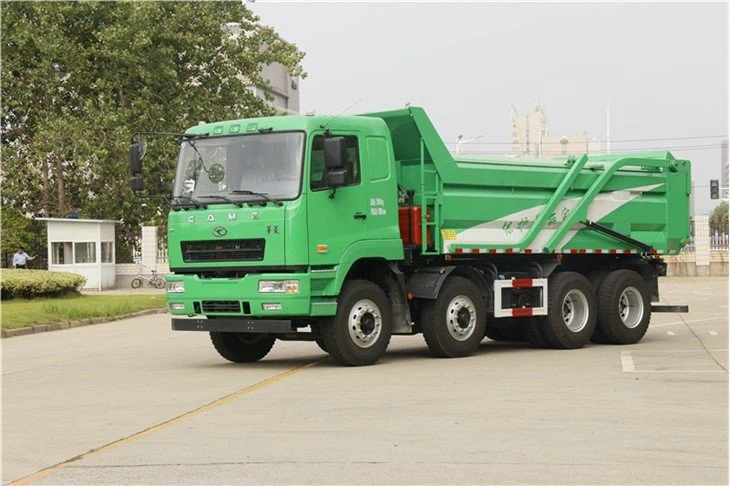

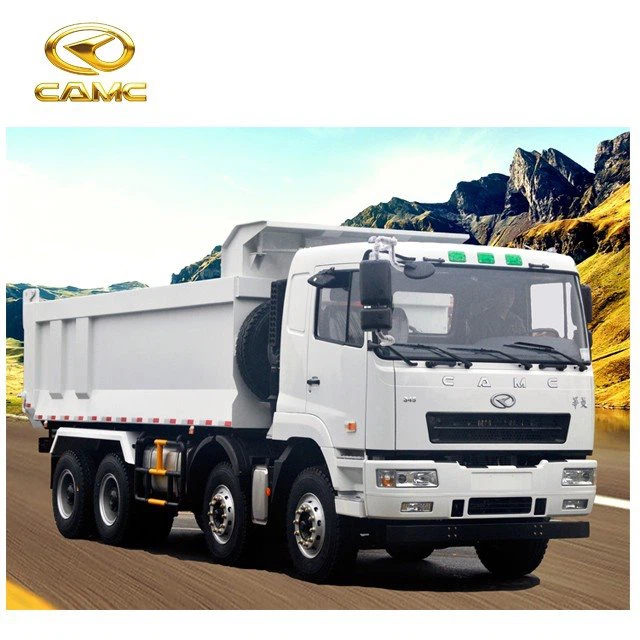

For the chassis part of the CAMC M5 12 wheel 8x4 Dump Truck, in order to ensure the passability of the bad road conditions, the cab of the vehicle is designed with high bars, which increases the approach angle of the vehicle, and the adaptability and the passing ability of the bad road conditions are better.

In order to ensure the load-bearing capacity of the dumper, the suspension of this truck adopts a layout of front 4 and rear 8, with 11 spring sheets for the 1 and 2 axles, and 12 spring sheets for the 3 and 4 axles, which can effectively meet the large load bearing capacity.Considering the stability of the body when the dump truck is lifted, this HOWO tractor is also equipped with a thick lateral stabilizer bar to further improve the chassis stability of the truck.

Specification of CAMC M5 8X4 Tipper Truck:

Why choose us?

1. We specialized in exporting the vehicle by sea. We have long-term cooperation shipping company to ensure the safety of customer

2. We will supply our customer the best way to delivery the vehicle with the most competitive freight. By container or Bulk vessel.

3. We will sent the regular shipping information to our customers.

4. We have perfect after-sale guarantee, provide customers with timely online questions and answers, supply spare parts, and regularly visit the market to service our products.

5. As a manufacturer, we can provide customers with the most appropriate product recommendations and the most favorable quotations.

What is GVW：

GVW is an acronym used to refer to “Gross Vehicle Weight”.

Gross Vehicle Weight is the maximum weight a vehicle is allowed to weigh when fully loaded with goods, passengers, & fuel. Every motor vehicle has a plated Gross Vehicle Weight which can be found on your vehicle’s VIN plate. GVW can be in excess of 1360kg for motorcycles, 1920kg for cars and up to 3500kg for vans.

GVW is the weight your car, van, or any other motor vehicle you operate, must never exceed. If you exceed the plated GVW of your vehicle, you’re effectively overloading which carries fixed penalty fines and, depending on the severity of the offence, a possible court summons.

What is wheel base：

The wheelbase is the measurement of distance between the centre of the front axle to the centre of the rear axle for a two-axle vehicle. In case of a multi-axle vehicle, the wheelbase is measured from the centre of the front axle to the middle point of drive & the tandem axle.

A vehicle with shorter wheelbase would most likely going to have a shorter deck length, whereas a longer wheelbase vehicle is going to have a longer deck length. A shorter wheelbase vehicle will have shorter turning circle diameter as well as better power transmission. A longer wheelbase vehicle would tend to have better stability.

There could be multiple wheelbases for a particular tonnage segment of vehicle. Different length of wheelbase allows accommodation of different types of items based on their density or specific gravity. For example, a shorter wheelbase is suitable for higher density goods such as agri, cement, construction aggregates, etc. An Intermediate wheelbase is suitable for medium density goods such tanker, LPG cylinders, reefer, etc. Whereas a longer wheelbase is suitable for lower density goods such as FMCG, white goods, E- commerce, automobiles, etc.
