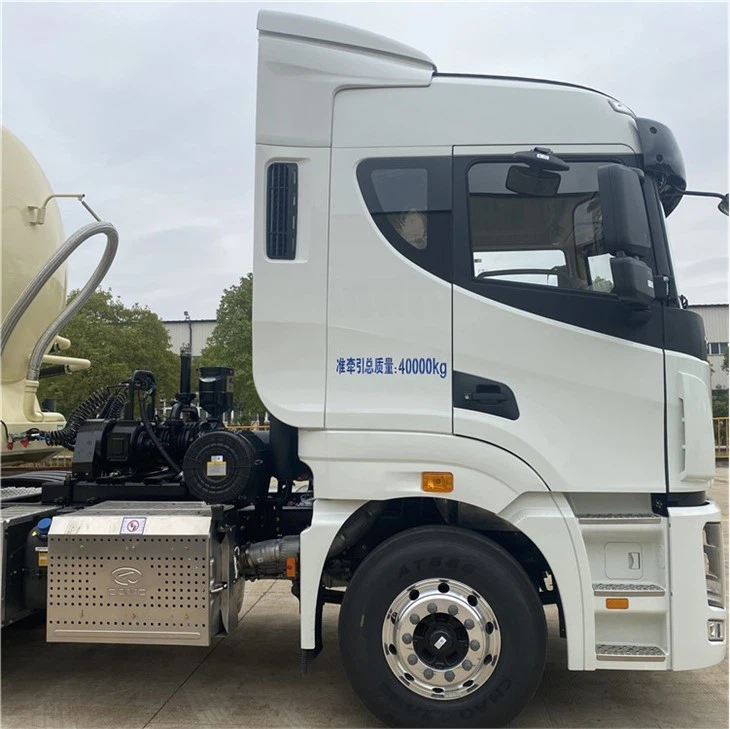

Powder Material Truck
Driving model: 6X4
Name of product: H9 tractor
Steering: Left hand
Send Inquiry
Product Details ofPowder Material Truck
Product Specification:
|
Name of Product |
Model |
HW4250B46C4M5J |
|
Driving model |
6X4 |
|
|
Name of product |
H9 tractor |
|
|
Steering |
Steering |
Left hand |
|
Engine |
Model |
CM6D28.480 50（GZ） |
|
Manufacture |
CAMC |
|
|
Max horse power |
480HP |
|
|
Max torque/speed |
2250N.m/1100-1450rpm |
|
|
Displacement |
11.81L |
|
|
Emission standard |
Euro-Ⅴ |
|
|
Gearbox |
Model |
ZF16S2231T0(SF+QL+YH) |
|
Manufacture |
ZF |
|
|
Numbers of forward gear |
16 |
|
|
Axle |
Model of front axle |
7.5T 7500KG |
|
Model of driving axle |
HL300A(4.267) 16000KG |
|
|
Tire |
Model of tire |
12R22.5(18PR) |
|
suspension system |
Number of springs |
9/12 |
|
Dimension |
Wheel base |
3400+1350（mm） |
|
Dimension |
6940*2495*3930（mm） |
|
|
Weight |
Curb weight |
8805KG |
|
GVW |
25000KG |

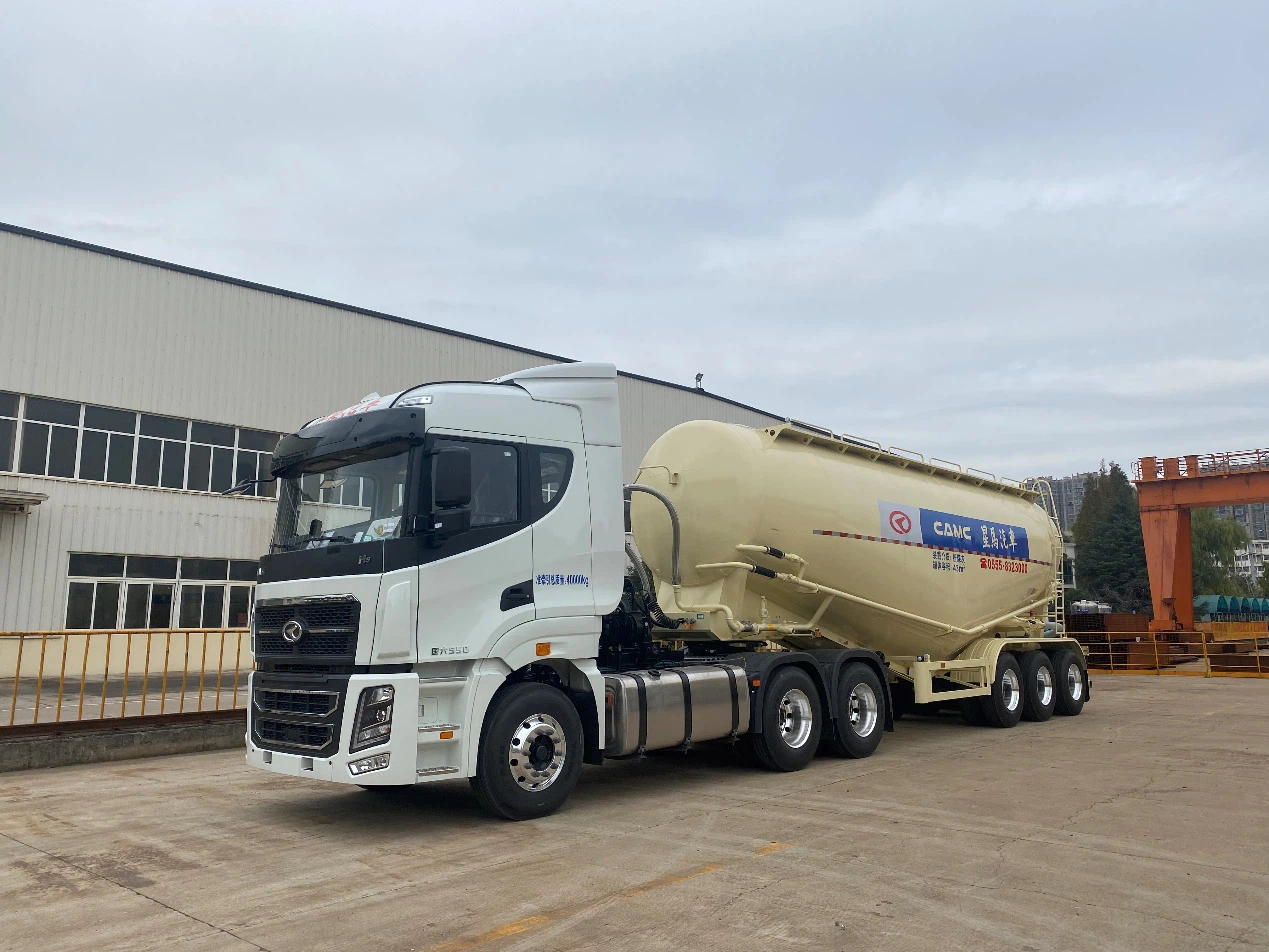

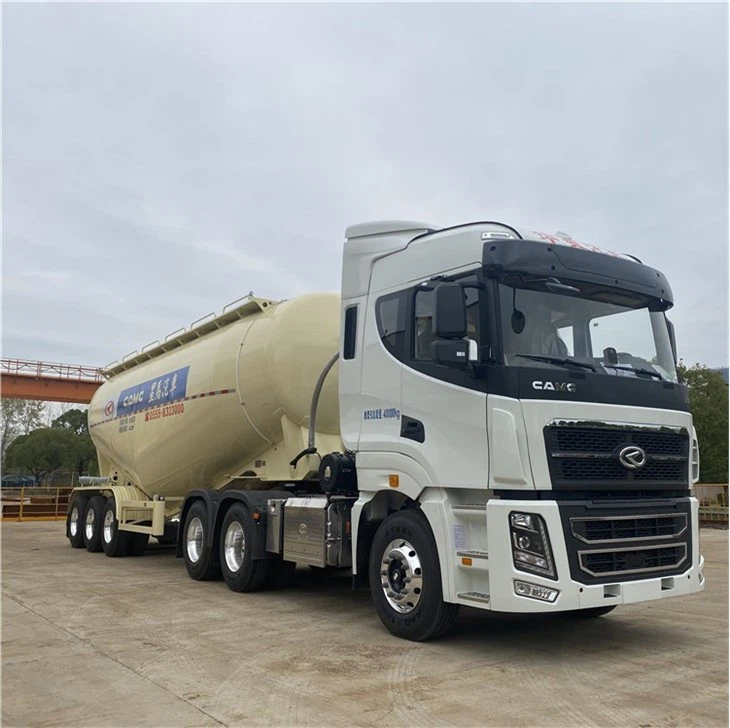

The 3 axle bulk cement trailer is used to transport bulk powder such as cement, fly ash, and other powder which is smaller than 1mm. It is a cement tank trailer, and we can also supply a cement tanker truck. The cement bulker trailer is able to deliver more cement in one trip, and save packaging costs for the user.
Main Specification Of Trailer：
|
Name of trailer |
Model |
AH9401GFL4 |
|
Driving model |
3-axle |
|
|
Name of trailer |
Powder material trailer |
|
|
Function |
Function |
Transporting bulk powder |
|
Body of trailer |
Thickness |
5mm Carbon steel Q235B |
|
Manufacture |
CAMC |
|
|
Overall Dimension(mm) |
12000x2500x3900mm |
|
|
Loading Weight (KG) |
60000KG |
|
|
Axle |
3x13Ton, CAMC |
|
|
Suspension system |
Standard Mechanical suspension |
|
|
Tire |
Model of tire |
12R22.5(18PR) |
|
Powder tank |
Capacity |
800L |
|
Suspension system |
Number of springs |
10/10/10 leaf spring suspension |
|
Other configurations |
Air compressor |
37 KW,0.2Mpa. 1000r/Min FUDA |
|
Tool Box |
1 Standard |
|
|
Brake system |
The dual Line braking system |
|
|
Brake air chamber |
WABCO, Six big double-air chambers |
Packaging and Shipping：
We supervise the inspection and packaging process of participating vehicles throughout the process, and our experienced team will provide you with a safe and economical transportation method to ensure the smooth delivery of products to your hands!
