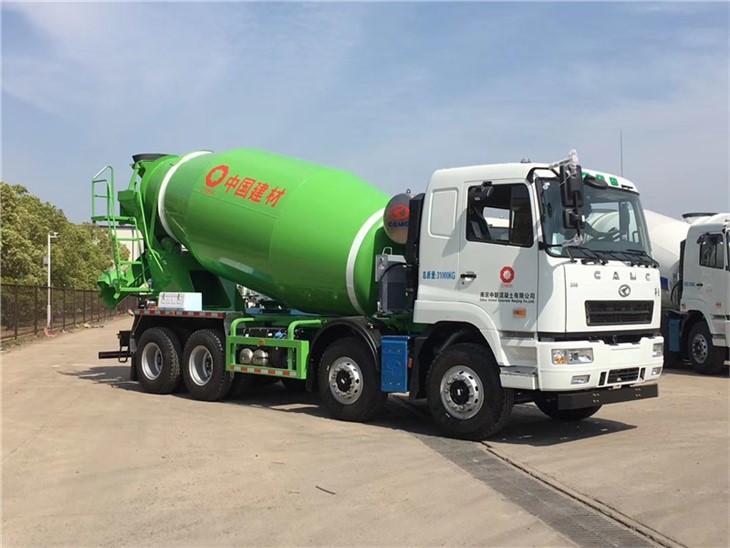

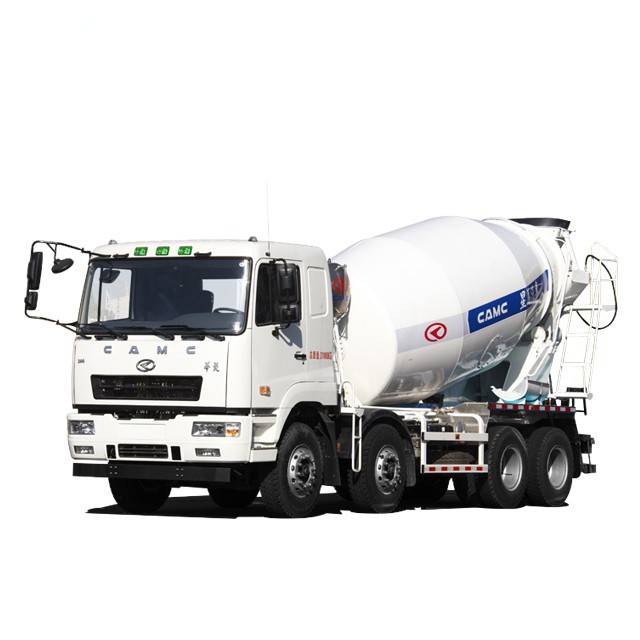

8x4 Mixer
CAMC mixer introduction and advantages：
CAMC is the main drafter of the national standard GB/T26408-2011 for concrete mixer trucks and the industry standard QC/T667-2010, adhering to the professional development path and taking high-tech as the core competitiveness , has been committed to the research of concrete mixer trucks for many years, independently developed a full range of 6-16 square concrete mixer trucks, leading the market trend, has been in the leading position in China for more than ten years, and exported to more than 20 countries and regions around the world.
Main Specification:
|
Name of Product |
Model |
HW1310B36CLMYJ-003 |
|
Driving model |
8X4 |
|
|
Name of product |
M5 mixer truck |
|
|
Steering |
Steering |
RHD/LHD optional |
|
Engine |
Model |
CM6D18.360 60 |
|
Manufacture |
CAMC |
|
|
Max horse power |
360HP |
|
|
Max torque/speed |
1735N.m/1100-1500rpm |
|
|
Displacement |
9.84L |
|
|
Emission standard |
Euro-2-6 |
|
|
Gearbox |
Model |
10JSD180T |
|
Manufacture |
FAST |
|
|
Numbers of forward gear |
10 |
|
|
Axle |
Model of front axle |
7T 7000KG*2 |
|
Model of driving axle |
HL460（4.875） 13000KG*2 |
|
|
Tire |
Model of tire |
12R22.5 |
|
Fuel tank |
Capacity |
300L |
|
suspension system |
Number of springs |
9/9/12 |
|
Dimension |
Wheel base |
1850+3000+1350（mm） |
|
Dimension |
9847*2495*3987（mm） |
|
|
Weight |
Kerb weight |
14500KG |
|
GVW |
31000KG |
|
|
Body |
Mixing volume |
10m3 |
|
Hydraulic system |
Domestic/Imported |
FAQ
Q1: What's your minimum order quantity?
A: One unit
Q2: What's warranty time?
A: 12 months or 30,000 km from the date of shipment whichever comes first.
Q3: What's your after-sale service?
A: We provide technical support for our trucks and whole life parts supply.
