Construction Mixer Truck
The above is a description of the CAMC M5 model concrete mixer.
4x2, 6x4, 8x4, diesel and CNG power are all available.
Cabin interior –upgraded
The interior has been redesigned. The new interior retains the reasonable layout of the original interior space, and at the same time adds practical functions, such as automatic air conditioning, LCD screen, etc.
Advantages and Features of M5 mixer truck:
1. Structural advantages of sub-beam of CAMC mixer
(1) Advanced design methods: using three-dimensional modeling and analysis and calculation, the sub-beam has high structural strength and is not easy to crack.
(2) Using high-strength steel: European standard QSTE500TM high-strength rectangular tube.
(3) Reliable connection with the chassis: The connection with the chassis is combined in three ways, that is, the connection method of connecting ears + riding bolts + chassis girder guards.
(4) Reliable reinforcement with details: cross beam of sub-beam, reinforced rear bearing tie bars.
2. Safe water and air system:
(1) Gas circuit protection box: all stainless steel ball valves with double gas circuit protection devices. Compact structure, not easy to rust, easy to operate, safe and reliable.
(2) Reliable high-quality aluminum-plastic pipe waterway: heat resistance, UV resistance, pressure resistance, and reliable sealing.
(3) The water inlet methods of various caliber interfaces are convenient for operation in various occasions.

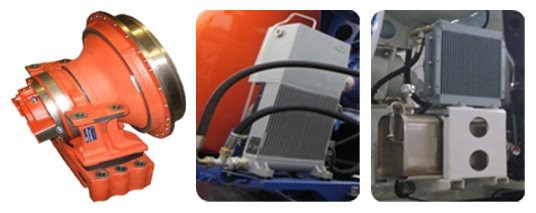

3. Superior hydraulic system configuration:
CAMC mixer truck adopts world-class hydraulic parts, and maintains long-term strategic cooperative relations with Rexroth, ZF and other companies. Provide customers with reliable and reliable mixer trucks.
(1) Reducer: The CAMC mixer mainly adopts the original German ZF reducer, PMP reducer and TOP reducer.
(2) Oil pump and motor: Most CAMC mixer trucks use German Rexroth oil pump and motor.
(3) Two different radiators to meet different working conditions in different regions.
(4) A temperature control switch is specially installed. When the hydraulic temperature exceeds a certain temperature, it will automatically start to effectively protect the safety of the hydraulic system.
Specifications:
Name of Product | Model | HW5250P34C6M5J-002 |
Driving model | 6X4 | |
Name of product | M5 mixer truck | |
Steering | Steering | Left hand |
Engine | Model | ISLe340 50 |
Manufacture | Dongfeng Cummins | |
Max horse power | 340HP | |
Max torque/speed | 1500N.m/1100-1500rpm | |
Displacement | 8.9L | |
Emission standard | Euro-V | |
Gearbox | Model | 9JSD150T-B |
Manufacture | FAST | |
Numbers of forward gear | 9 | |
Axle | Model of front axle | 7.5T 7500KG |
Model of driving axle | HL300A（5.263） 16000KG | |
Tire | Model of tire | 12R22.5 |
Fuel tank | Capacity | 400L |
suspension system | Number of springs | 9/12 |
Dimension | Wheel base | 3600+1350（mm） |
Dimension | 9200*2500*3980（mm） | |
Weight | Curb weigh | 15000KG |
GVW | 25000KG | |
Body | Mixing volume | 8m3 |
Hydraulic system | Domestic/Imported |
FAQ
1.Q: What kind of payment do you accept?
A: We accept T/T and L/C; Others payment is negotiable.
2.Q: What's your minimum order quantity?
A: 1 unit.
3.Q: What's your delivery time?
A: 30 working days after received the deposit.
4.Q: What do we supply?
A: We supply spare parts (original, OEM, and replacement) for all types of trucks and trailers and nice quality to ensure the trucks and trailers being in good working conditions.
