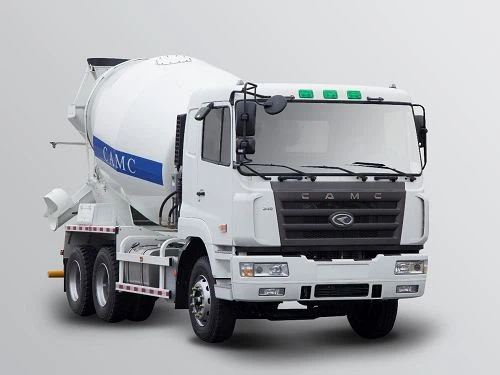

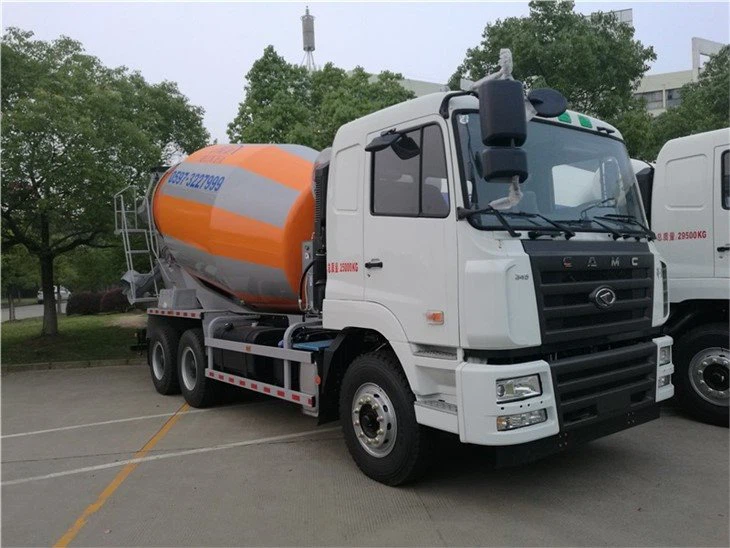

10 Wheeler Concrete Truck
Detail of Product:
Name of Product | Model | HN4250A46C4M5 |
Driving model | 6X4 | |
Name of product | M5 mixer truck | |
Steering | Driving type | LHD |
Engine | Model | CM6D12.390 50 |
Manufacture | CAMC | |
Max horse power | 390HP | |
Max torque/speed | 1695N.m/1100-1500rpm | |
Displacement | 8.87L | |
Emission standard | Euro2-6 Optional | |
Gearbox | Model | 12JSD180T |
Manufacture | FAST | |
Numbers of forward gear | 12 | |
Axle | Model of front axle | 7.5T 7500KG |
Model of driving axle | HL300A（5.263） 16000KG | |
Tire | Model of tire | 12.00R20 |
Fuel tank | Fuel Capacity | 400L |
Suspension system | Number of springs | 9/12 |
Dimension | Wheel base | 4100+1350（mm） |
Dimension | 10000*2500*3950（mm） | |
Weight | Kerb weigh | 16400KG |
GVW | 31000KG | |
Body | Mixing volume | 12m3/10m3/9m3 Optional |
Hydraulic system | Domestic/Imported |

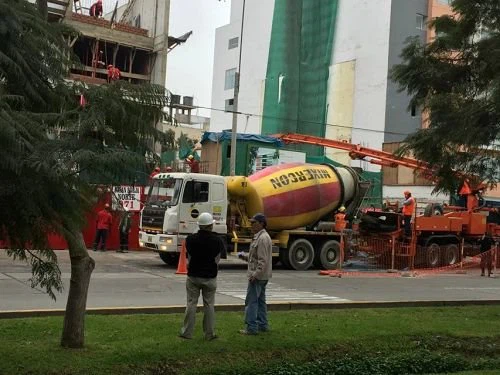

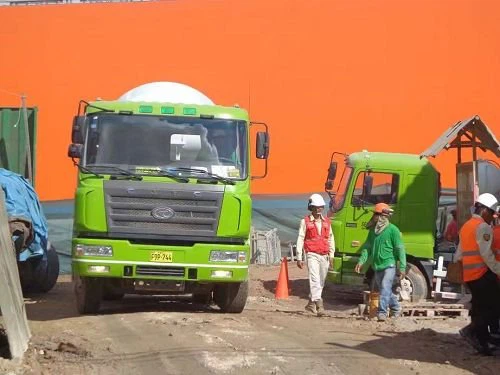

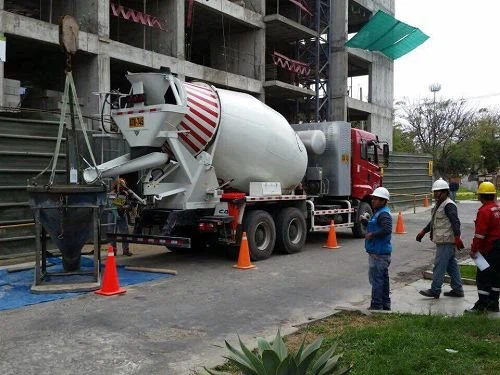

Customer pictures:
Shipping & Packing:
CAMC 10 wheeler concrete Mixer Truck In Stock for Sale is usually shipped in Bulk ship, RORO ship and flat rack Container. RORO Ship: The truck is driven into the ship directly. We will choose the safer and cheaper method according to your requirement.
